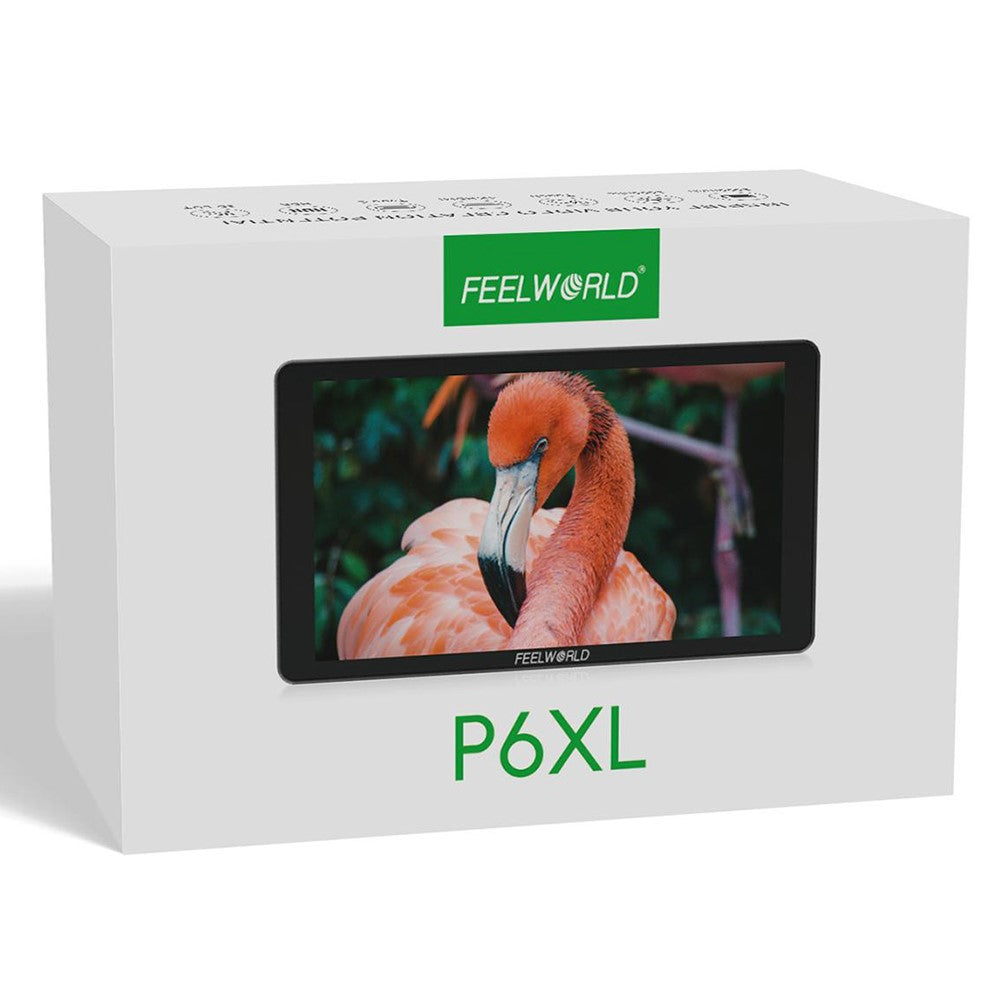

FEELWORLD P6XL 6 Inch Camera Monitor Aluminum Built-in Battery Photography Monitor for DSLR / Videography

• 【Professional Monitoring】 6-inch IPS display with 1920x1080 resolution and 1200cd/m2 brightness for high-quality image monitoring.
• 【Advanced Features】 Supports 3D LUT, waveform, HDR, vector scope, and histogram for precise image analysis and color grading.
• 【Versatile Assist Tools】 Includes focus assist, false color, exposure check, and various grid options to enhance shooting accuracy.
• 【Flexible Power Options】 Built-in 3000mAh battery for up to 2 hours of operation, with fast-charging support via USB-C.
• 【Comprehensive Input Support】 HD input compatible with various resolutions up to 4K, supporting multiple frame rates for versatile use.

Specifications:

• Model: P6XL
• Screen Size: 6-inch IPS
• Resolution: 1920 × 1080 pixels
• Pixel Pitch: 0.069 (H) x 0.069 (V) mm
• Aspect Ratio: 16:9
• Brightness: 1200 cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)
• Signal Input: 1 x HD 1.4
• Other Interfaces: 1 x USB-C (for firmware update / LUT file import)
• Audio Output: 3.5mm Stereo Headphone Jack
• Battery Capacity: 3000mAh / 22.2Wh
• Voltage: 7.4V
• Operating Time: Approx. 2 hours (at full brightness / 5-speed fan)
• Charging Time: Approx. 2 hours
• Power Input USB: Type-C 9V/2A (supports PD2.0/3.0, Samsung AFC, Huawei FCP, QC2.0/3.0 fast-charging protocols) Note: Charger voltage must be 9V
• Supported HD Input Formats:
• 480i / 576i / 480p / 576p
• 1080i (60/59.94/50)
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 3840 × 2160p (30/29.97/25/24/23.98)
• Power Consumption: ≤21W (charging + operation); ≤14W (charging only); ≤9W (operation only, fully charged)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -30°C to 80°C
• Mounting Type: 1/4"-20 Thread Socket (Bottom)
• Product Size: 154 x 87 x 17 mm
• Product Weight: 332g

Package included

• 1 x Camera Monitor
• 1 x Micro HD Cable
• 1 x USB-A to USB-C Cable
• 1 x Snail Gimbal
• 1 x Wrench
• 1 x USB to Type-C Adapter
• 1 x Sun Hood
• 1 x Sun Frame
• 1 x Magic Tape Cable Tie
• 1 x HD Cable
• 1 x English Manual
