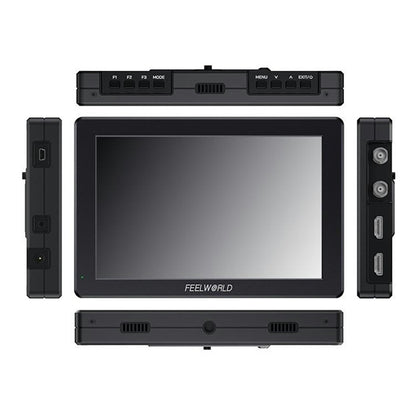

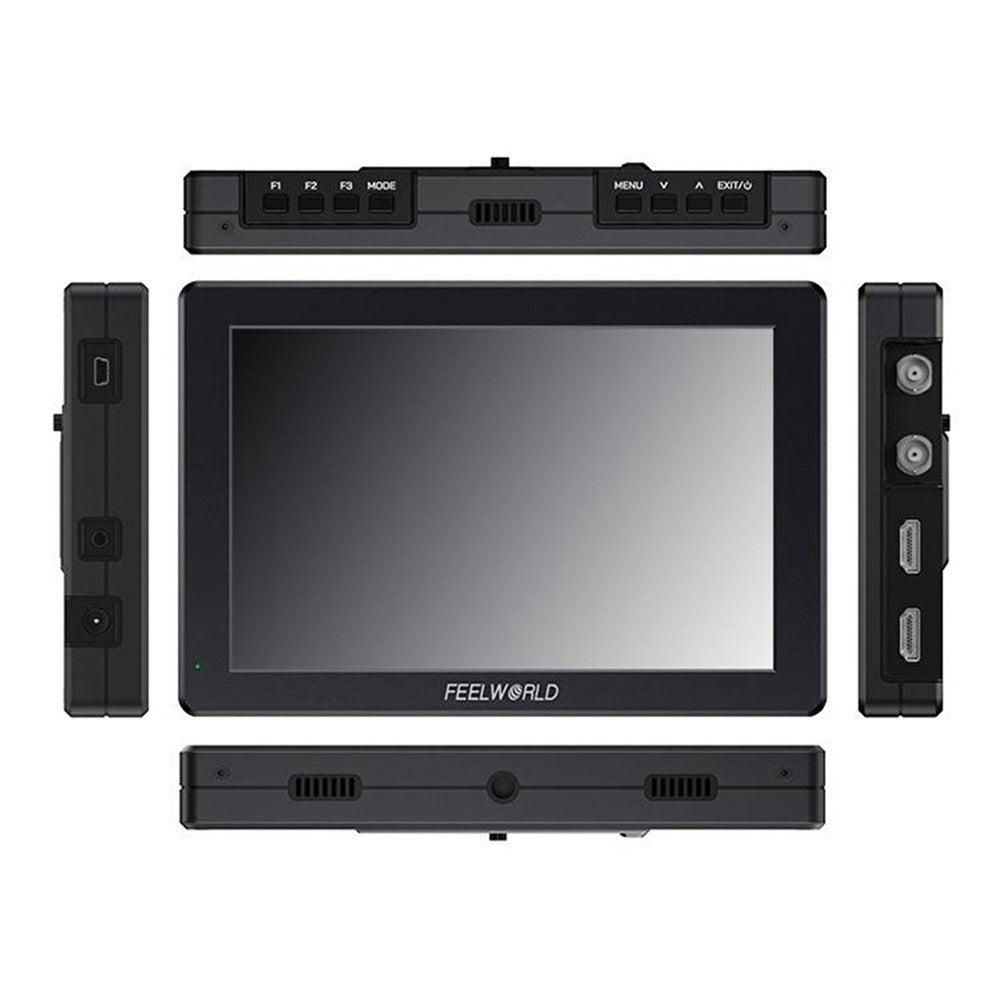

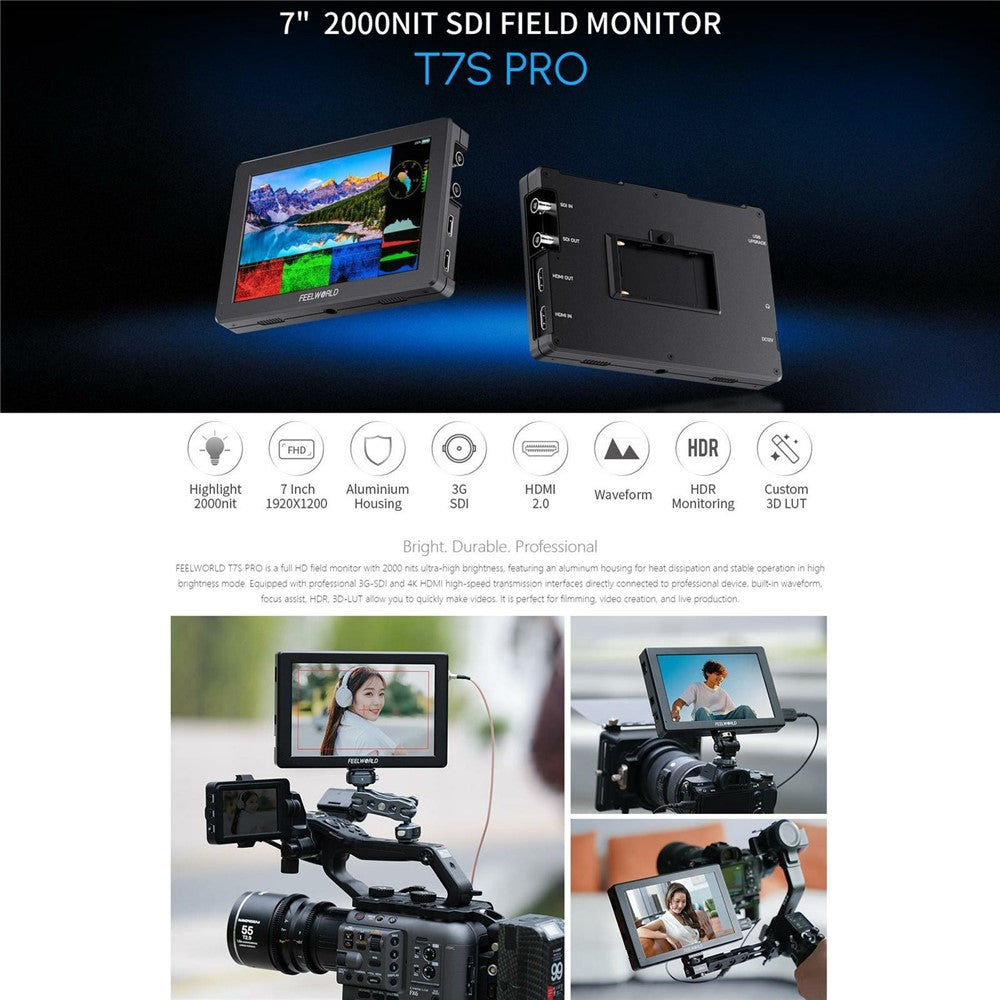

FEELWORLD T7S PRO 7 Inch Camera Monitor Ultra Bright Display Screen for Photography

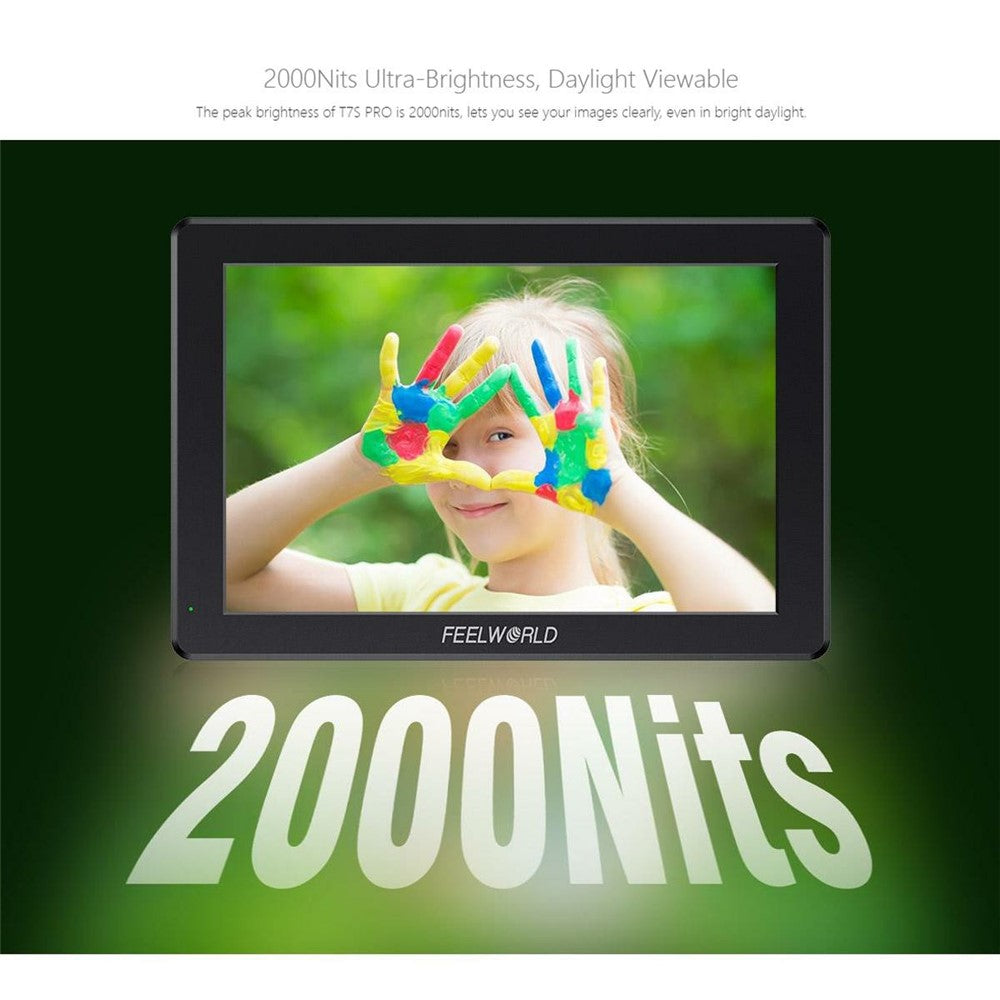

• 【Ultra-Bright Display】 7-inch IPS screen with 2000cd/m² brightness and 1920x1200 resolution for exceptional clarity in various lighting conditions.
• 【Versatile Connectivity】 Equipped with 3G-SDI and HD 2.0 inputs/outputs for compatibility with a wide range of professional cameras and devices.

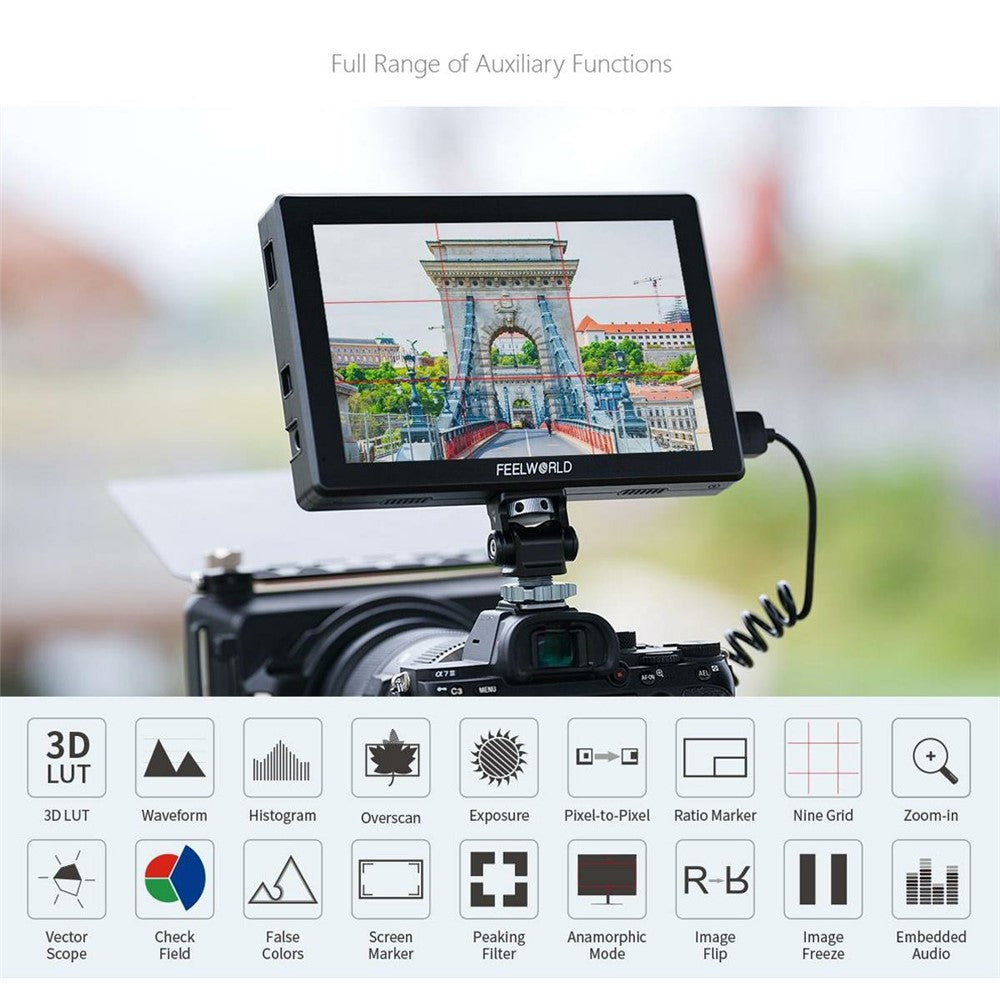

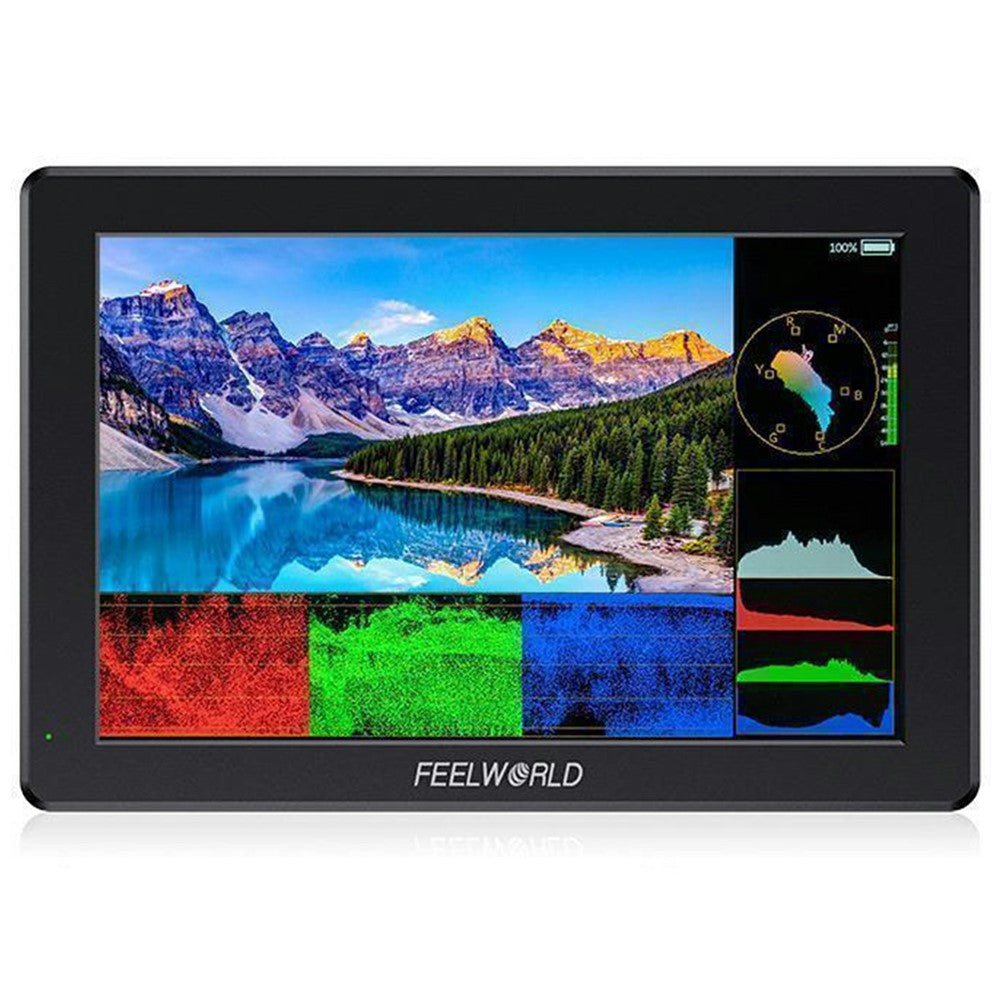

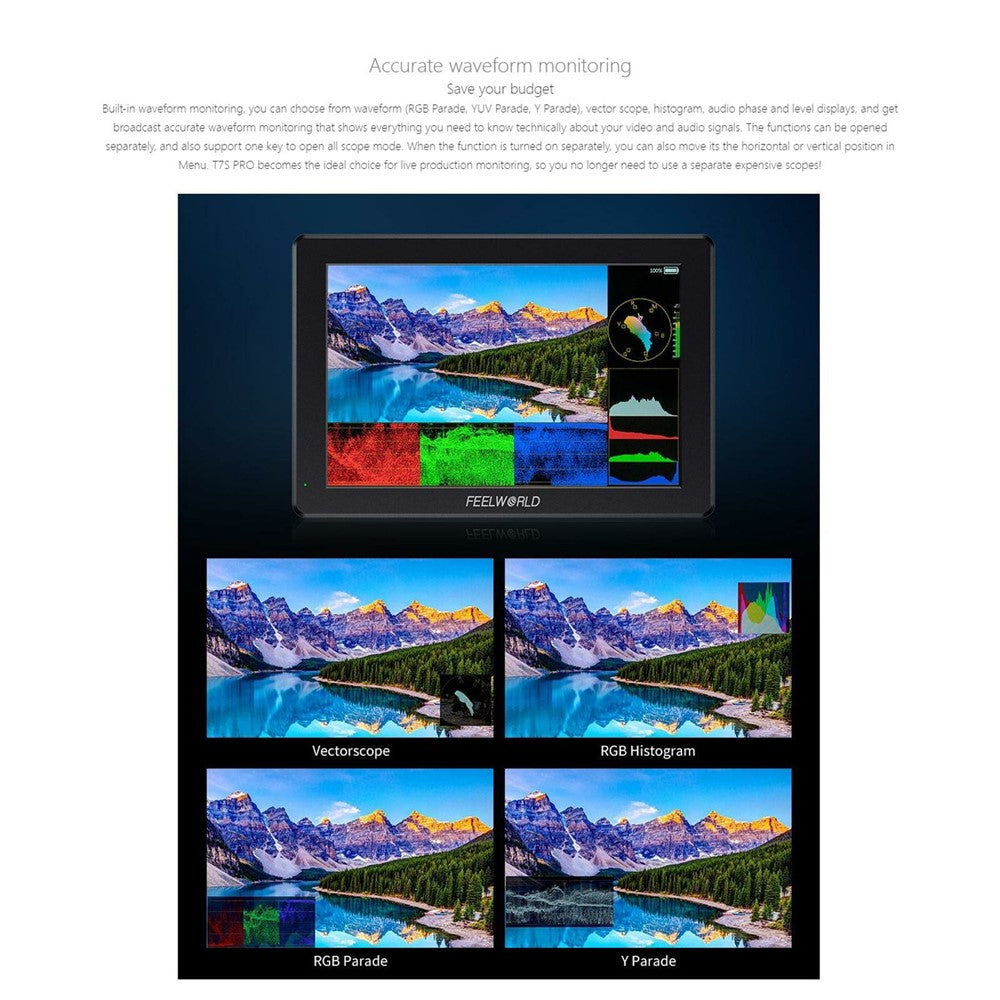

• 【Advanced Monitoring Features】 Includes waveform, vectorscope, histogram, focus assist, and false color tools for precise image analysis and control.
• 【HDR Support】 Capable of displaying HDR content, ensuring accurate color representation and dynamic range.

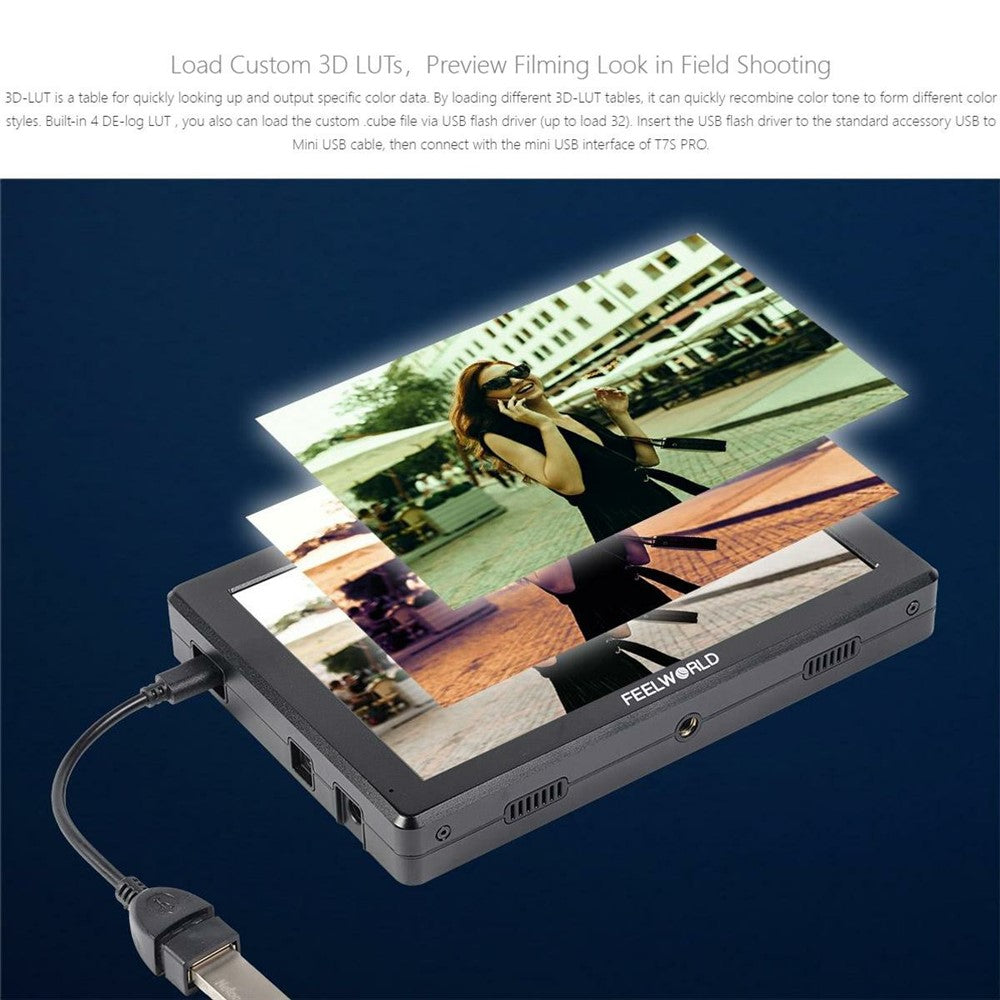

• 【Customizable LUT Support】 Supports 3D LUT recording to Rec.709 and allows uploading of up to 32 custom 3D LUTs for tailored color grading.

Specifications:

• Model: T7S PRO
• Screen Size: 7-inch IPS display
• Resolution: 1920 x 1200 pixels
• Pixel Pitch: 0.07875 (W) x 0.07875 (H) mm
• Color Depth: 8-bit
• Aspect Ratio: 16:10
• Brightness: 2000 cd/m²
• Contrast Ratio: 1200:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

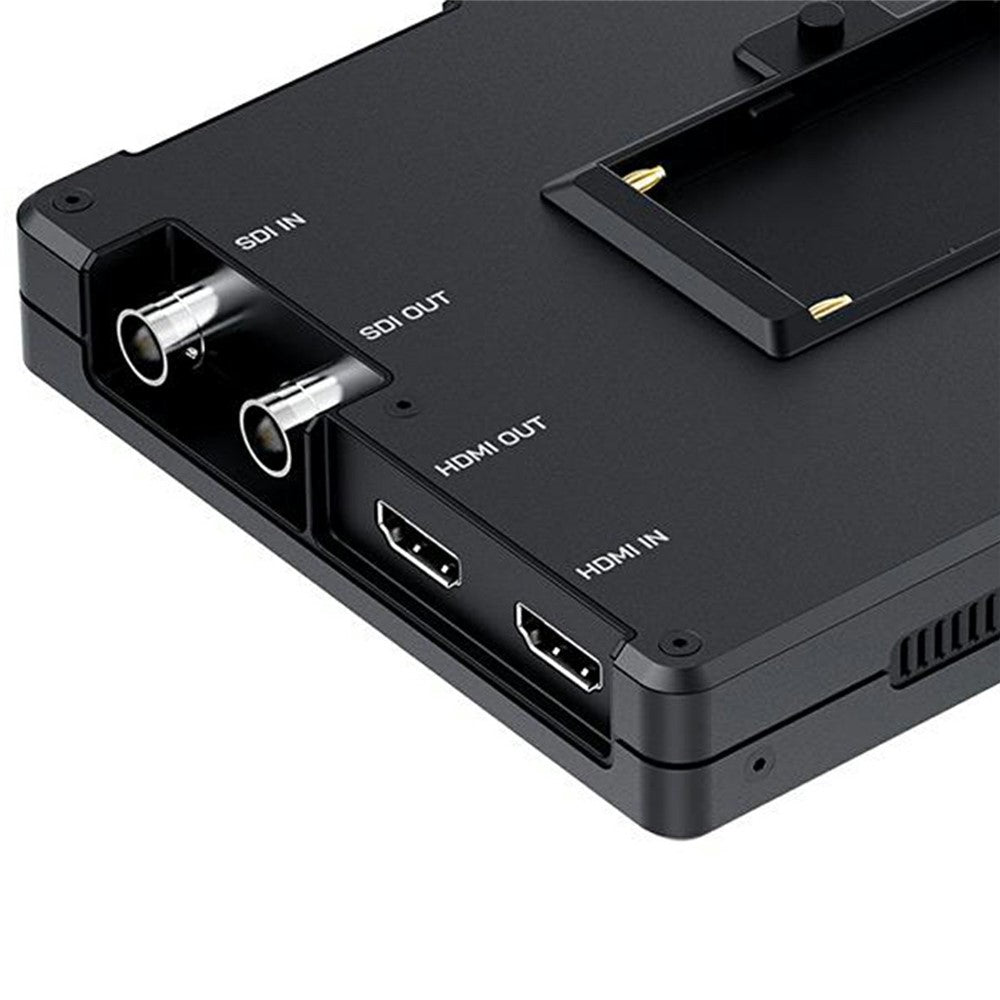

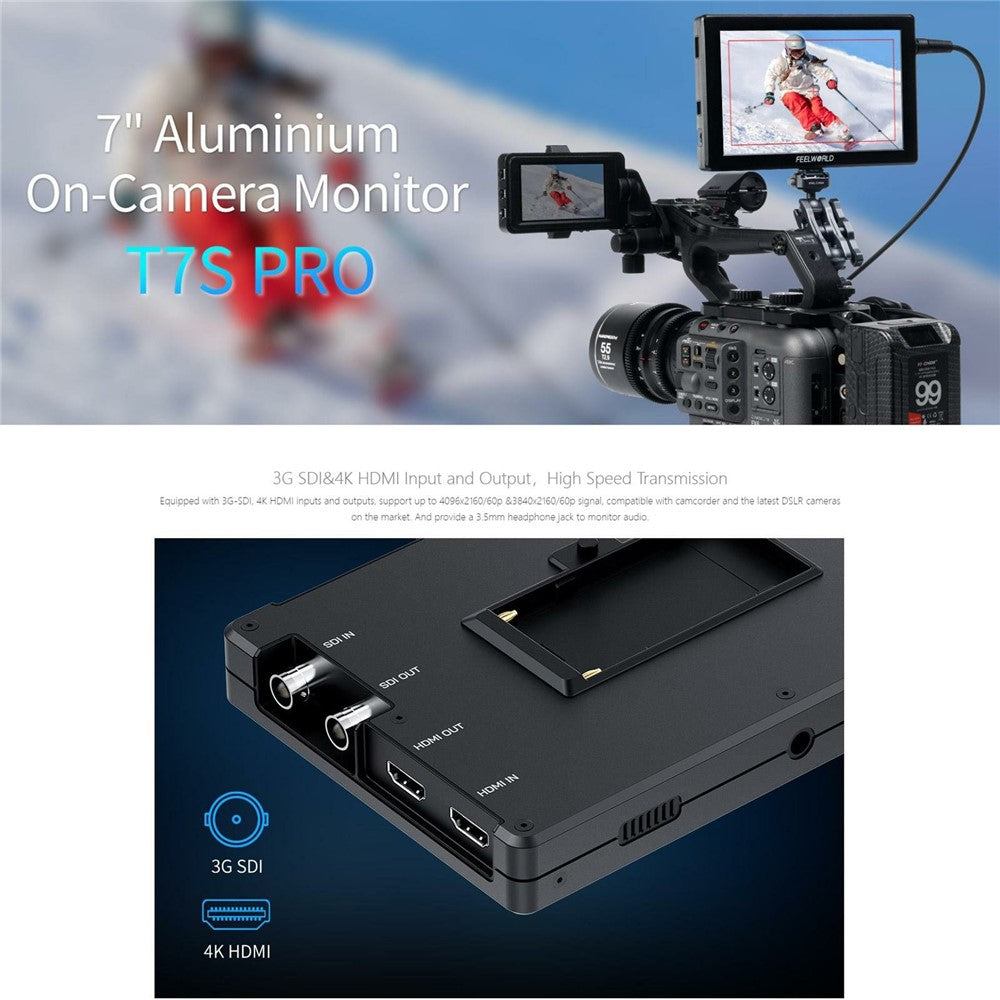

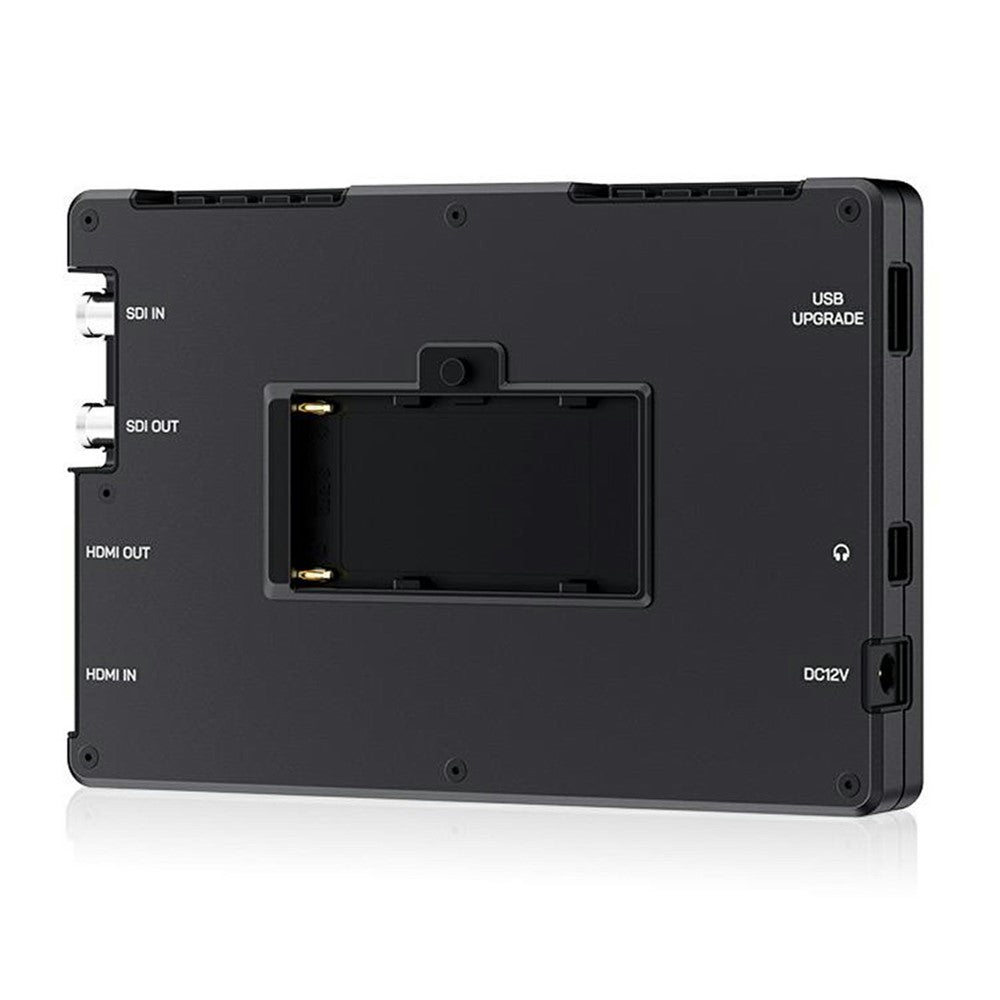

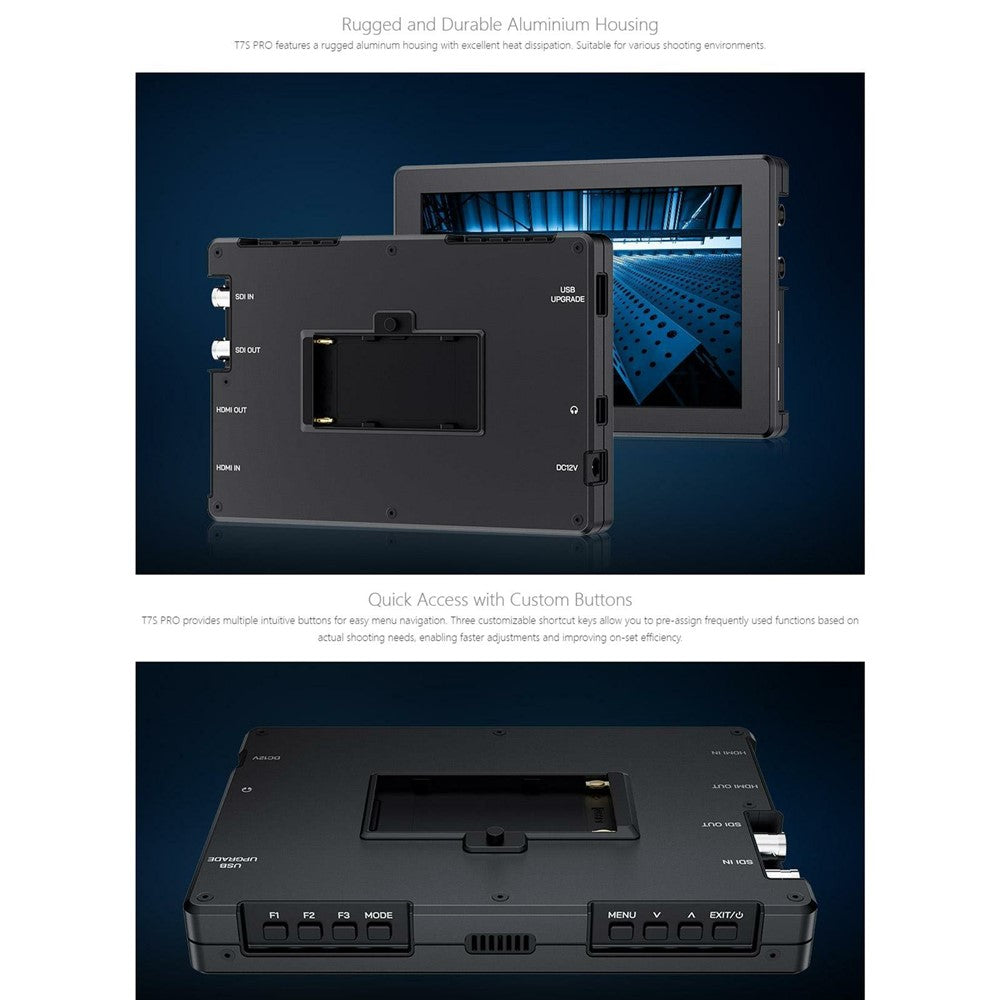

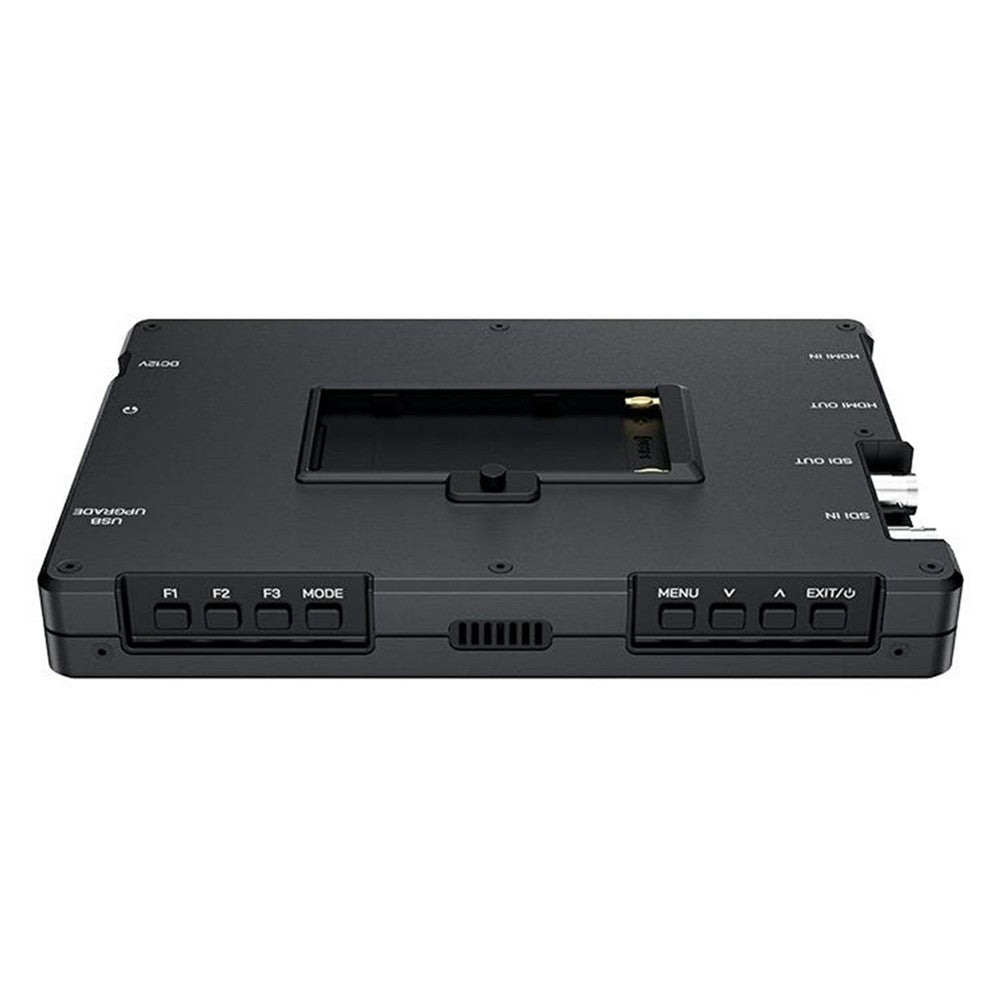

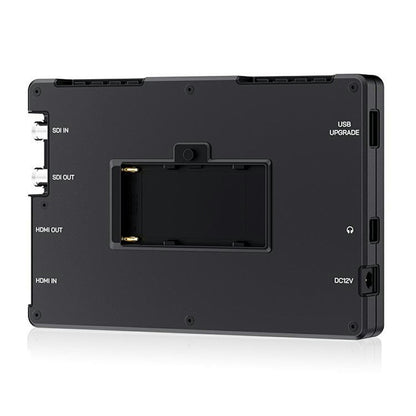

• Input:
• 1 x SDI: 3G-SDI
• 1 x HD: HD 2.0
• 1 x USB: Mini USB (for importing LUT files and firmware updates)
• Output:
• 1 x SDI: 3G-SDI
• 1 x HD: HD 2.0
• Audio: 3.5mm Stereo Headphone Jack
• Supported 3G-SDI Input/Output Formats:
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• Supported HD Input/Output Formats:
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
• 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98)
• General Specifications:

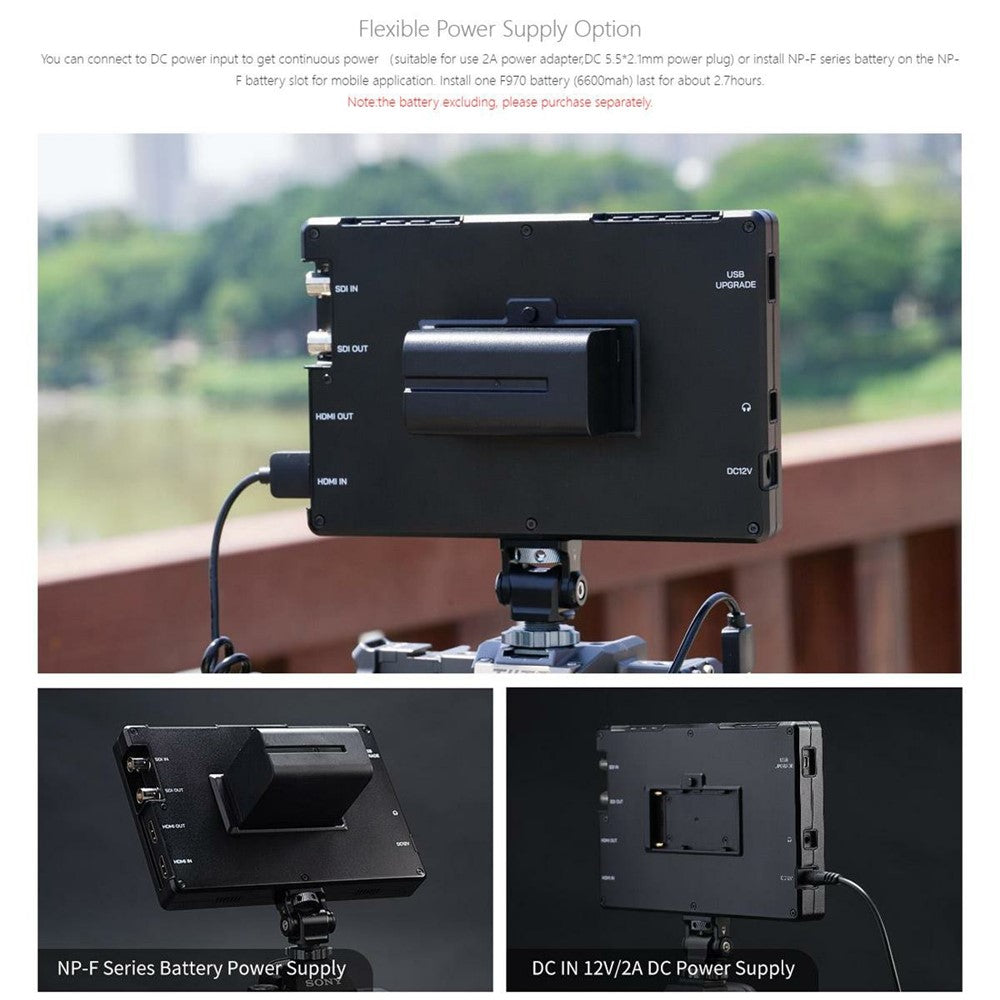

• Power Port: DC IN
• Input Voltage: DC 7–24V
• Power Consumption: ≤18W
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -30°C to 65°C
• Mounting Method: 1/4"-20 Threaded Hole (Bottom)
• Dimensions: 182.8 x 122.8 x 24 mm
• Weight: 370 g

Package included

• 1 x Monitor
• 1 x Micro HD Cable
• 1 x HD Cable

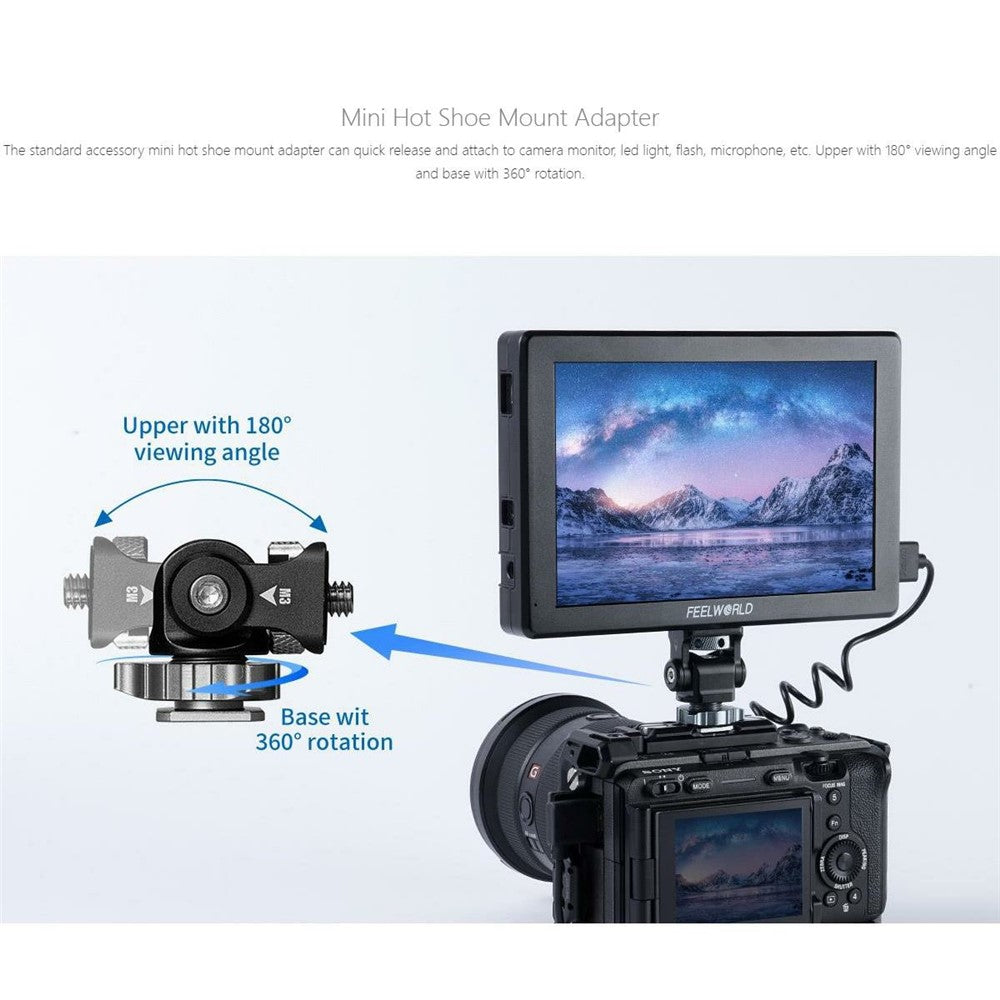

• 1 x Snail Mount
• 1 x Hex Wrench
• 1 x USB to Mini USB Cable

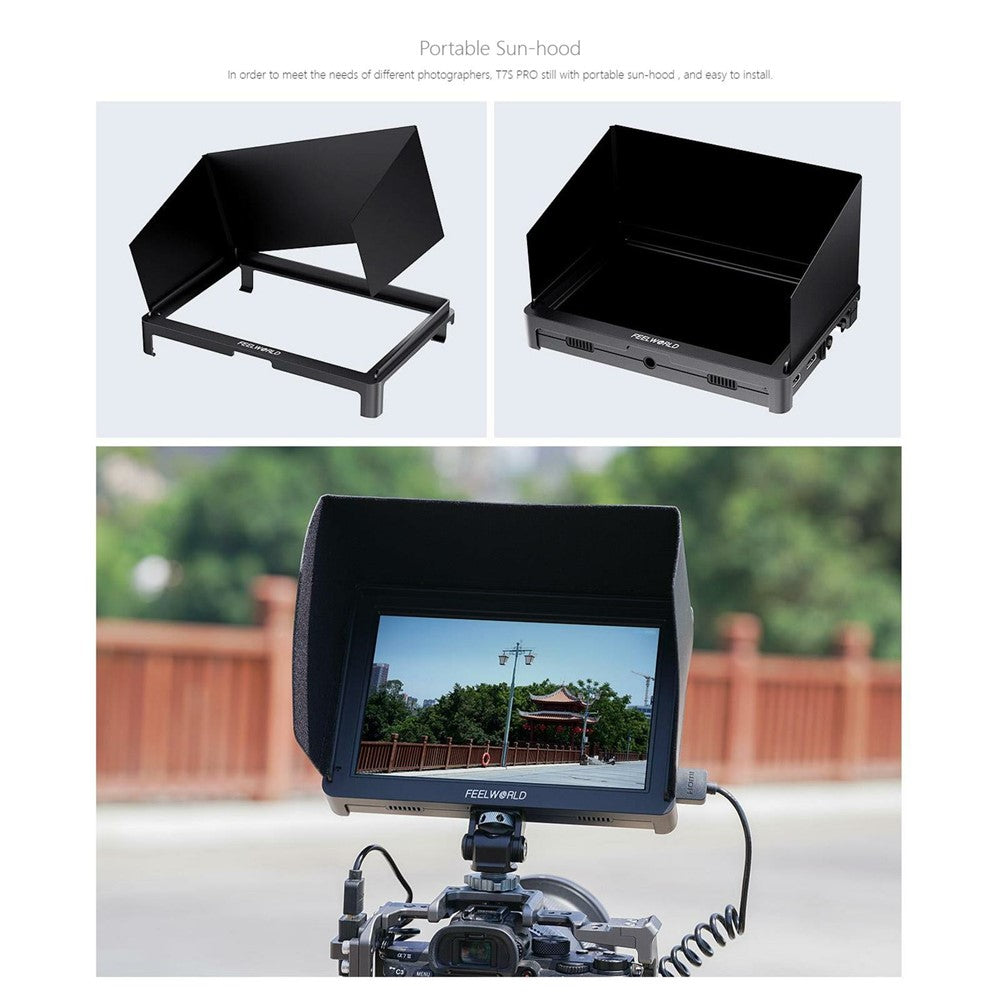

• 1 x Sun Hood
• 1 x Frame
• 1 x Cable Tie
• 1 x English Manual
