A2964 140Pcs 5A / 10A / 20A / 30A / 40A / 50A / 60A / 80A / 100A Open Barrel Terminals Set Wire Crimp Cable Lugs Copper Terminal Connectors with Storage Box

Features & Specifications
• Using high-quality materials, anti-oxidation, anti-aging, high-temperature resistance, corrosion resistance, convenient wiring
• The surface is flat and smooth, with high-density forging, high electrical conductivity, high thermal conductivity
• Thickened copper terminal, large current load force, high safety
• The surface is pickled, the surface is clean and bright, the oxidation resistance is extremely strong, it is not easy to oxidize, and the service life is long
• Widely used in military, aerospace, household appliances, lighting electronics, automotive electronics, ships, marine, etc
• Installation position: stripped copper wire at both ends of the cable

Specification:
• Product material: thickened copper
• Production: Cold-pressed
• Applicable temperature: -55℃~150℃
• Interface type: AC/DC

Terminal Specifications:
• 5A: Screw hole diameter 5.2mm, wiring range 0.5-1.5mm²
• 10A: Screw hole diameter 5.3mm, wiring range 1.5-4.0mm²
• 20A: Screw hole diameter 6.3mm, wiring range 1.5-6.0mm²
• 30A: Screw hole diameter 6.3mm, wiring range 2.5-6.0mm²
• 40A: Screw hole diameter 6.3mm, wiring range 4-10mm²
• 50A: Screw hole diameter 6.3mm, wiring range 4-10mm²
• 60A: Screw hole diameter 8.3mm, wiring range 4-16mm²
• 80A: Screw hole diameter 8.3mm, wiring range 6-16mm²
• 100A: Screw hole diameter 8.3mm, wiring range 10-25mm²
Note:
• The screws must be tightened.
• The cable and copper terminals must be plugged into place and pressed tightly with pliers.

Package included

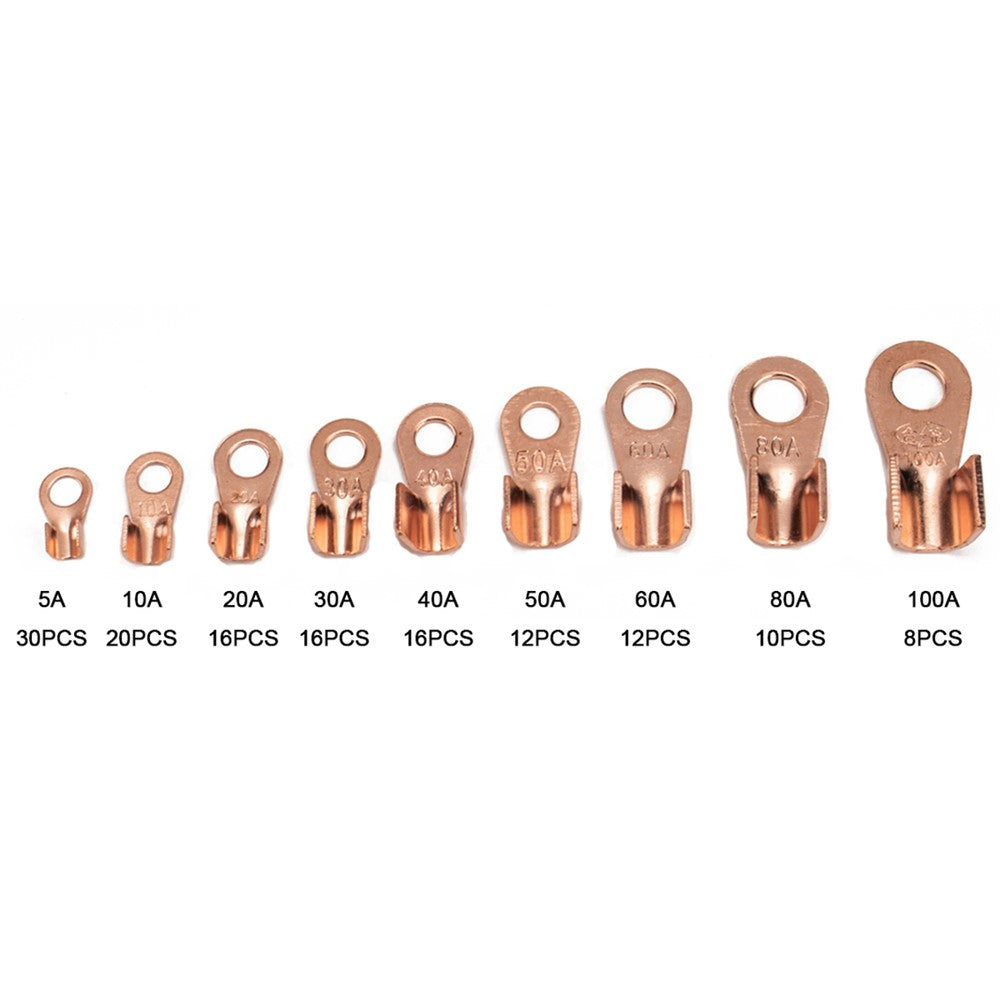

• 30 x 5A Terminals
• 20 x 10A Terminals
• 16 x 20A Terminals
• 16 x 30A Terminals
• 16 x 40A Terminals
• 12 x 50A Terminals
• 12 x 60A Terminals
• 10 x 80A Terminals
• 8 x 100A Terminals

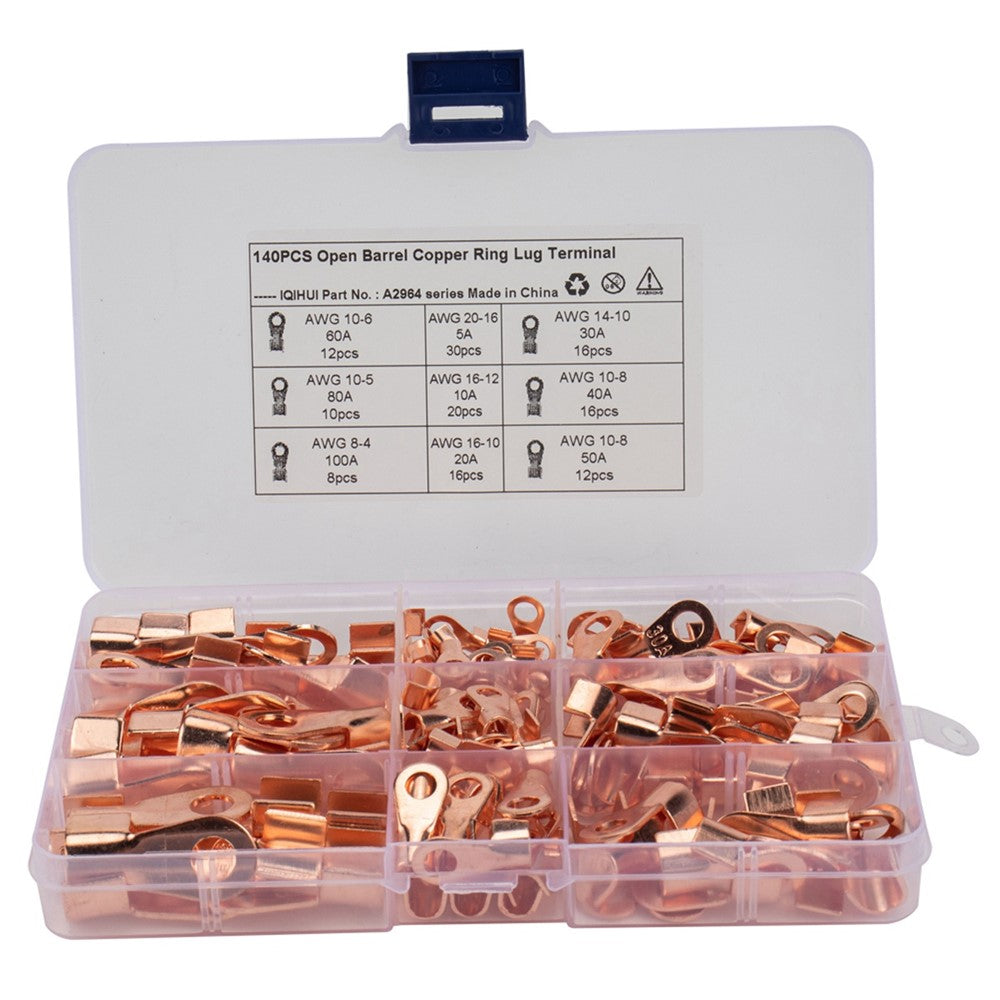

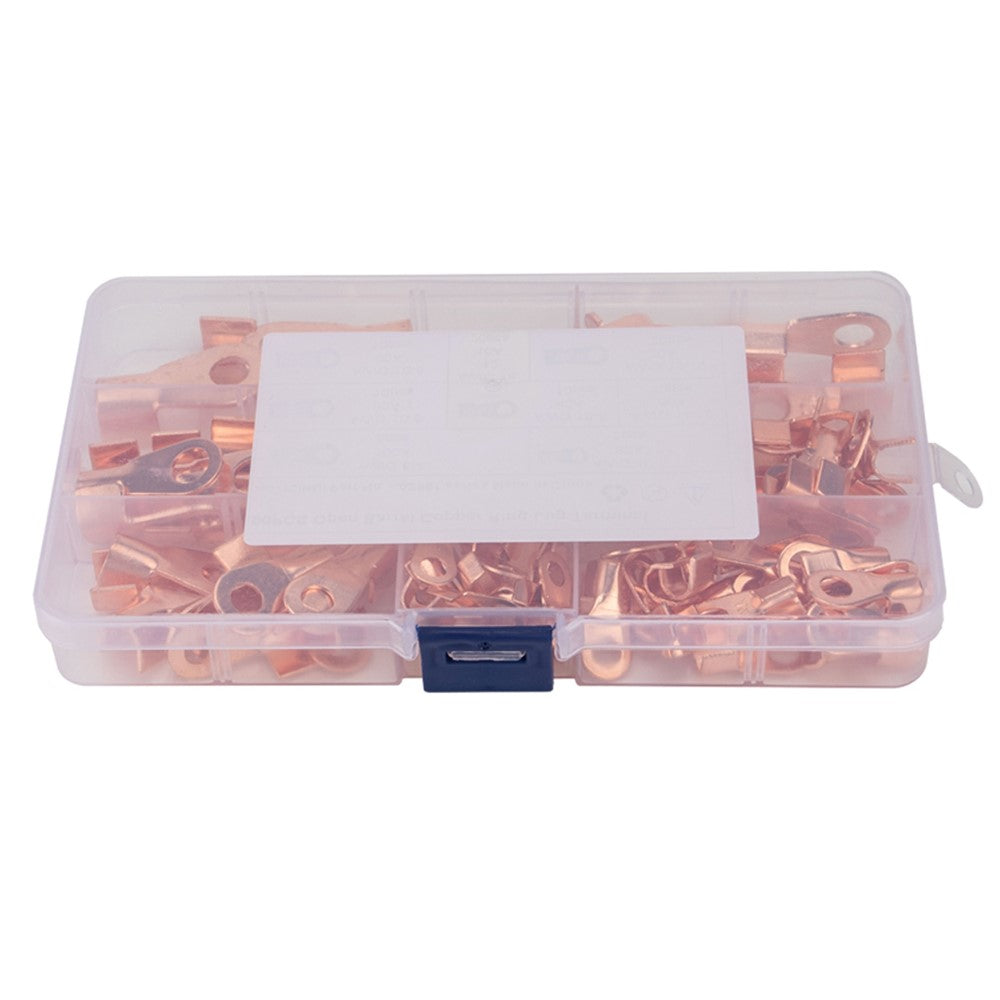

• 1 x Plastic Box
