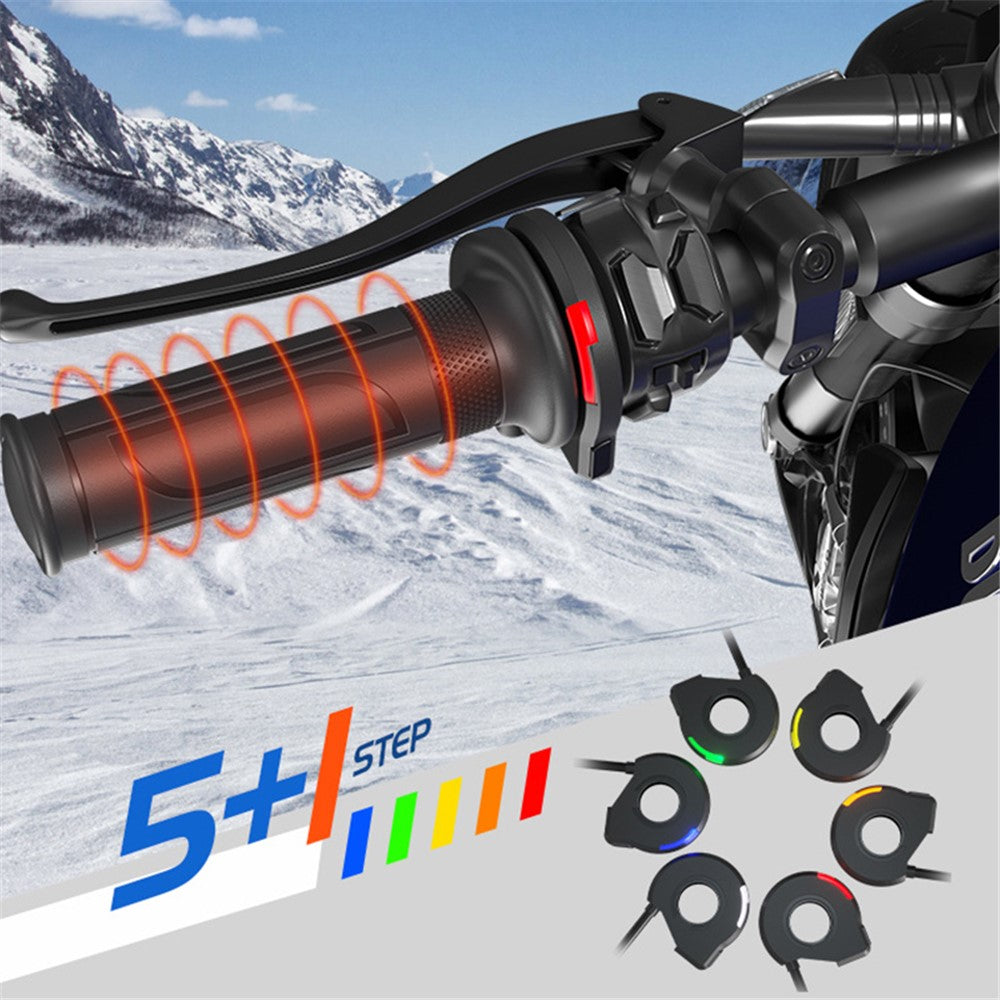

Features & Specifications • The switch of the product is a built-in intelligent temperature control chip, 5+1 gears can adjust the temperature, intelligent temperature control is more convenient, according to personal preferences, and adjusts to the corresponding temperature • The product has added a memory function, anytime you turn it on, you can keep the optimal temperature of the last adjustment, which is more considerate and convenient • The product is specially designed with a neutral function when the switch is adjusted to neutral, the white light will be on for 5 seconds and then flash 5 times to turn off automatically, it will not consume battery power, and it is safer and more convenient to use • Scope of application: Suitable for DC12V electric scooters, motorcycles, beach bikes, three-wheeled motorcycles

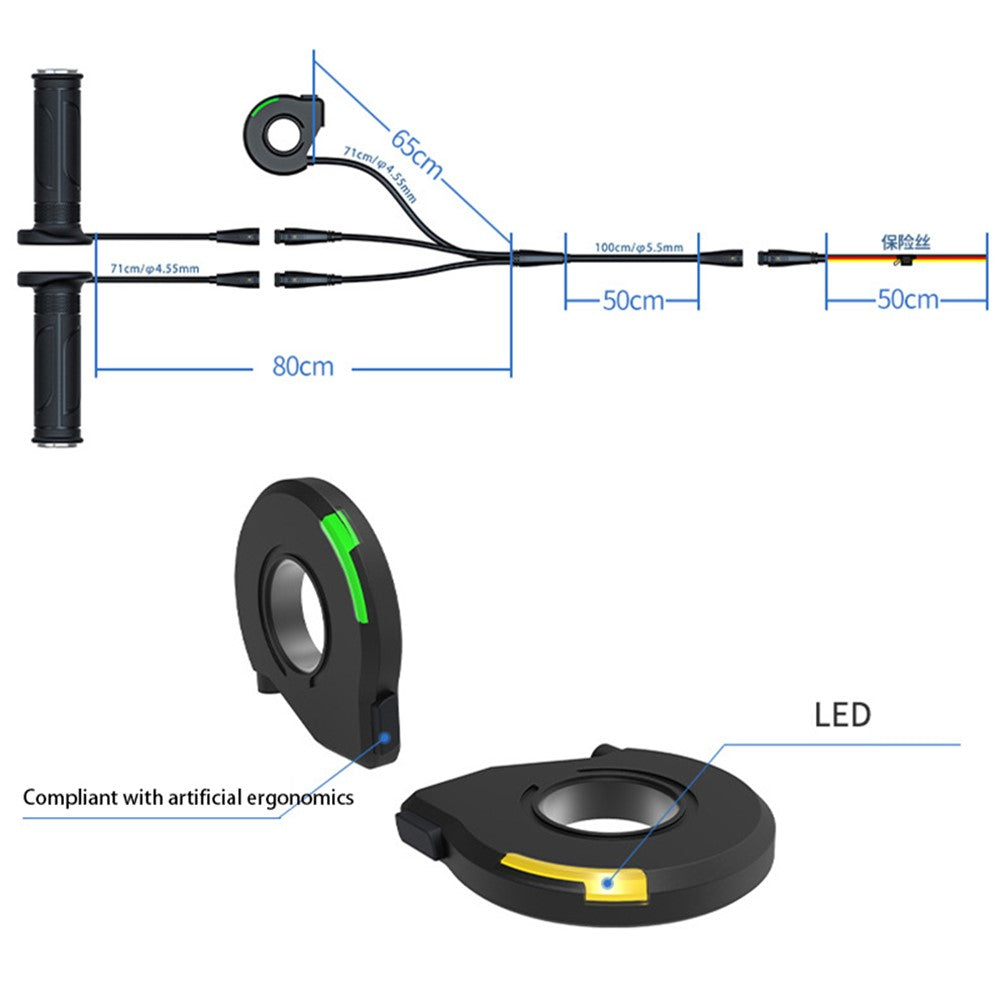

Specifications: • Product Model: CSZH-1787A1 • Product weight: 355g • Product Material: PVC • Input voltage: DC12V • Working voltage: DC12V-16V • Output power: 20-40W • Operating temperature: -15℃-50℃ • Applicable pipe diameter: 2.2mm • Protection Voltage: When the input voltage is ≥16V, it can be turned on, but the white light flashes 3 times quickly and then shuts down

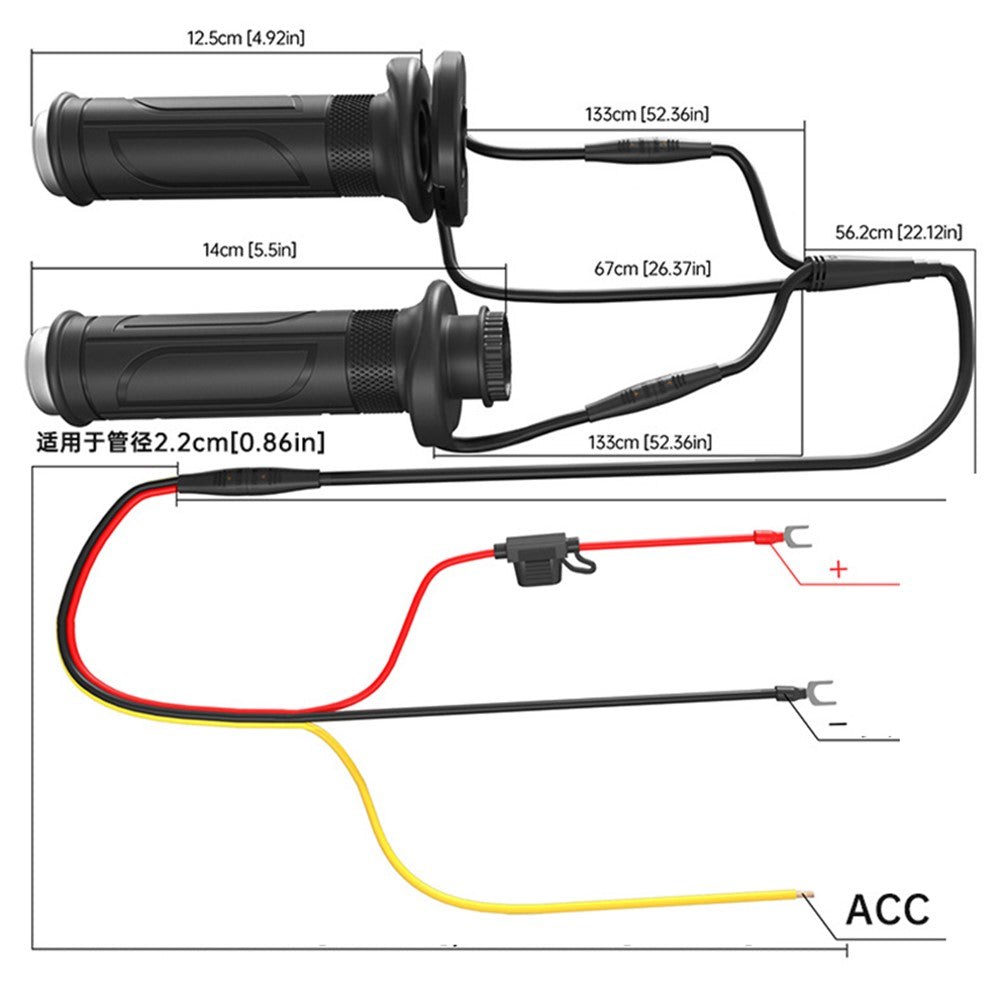

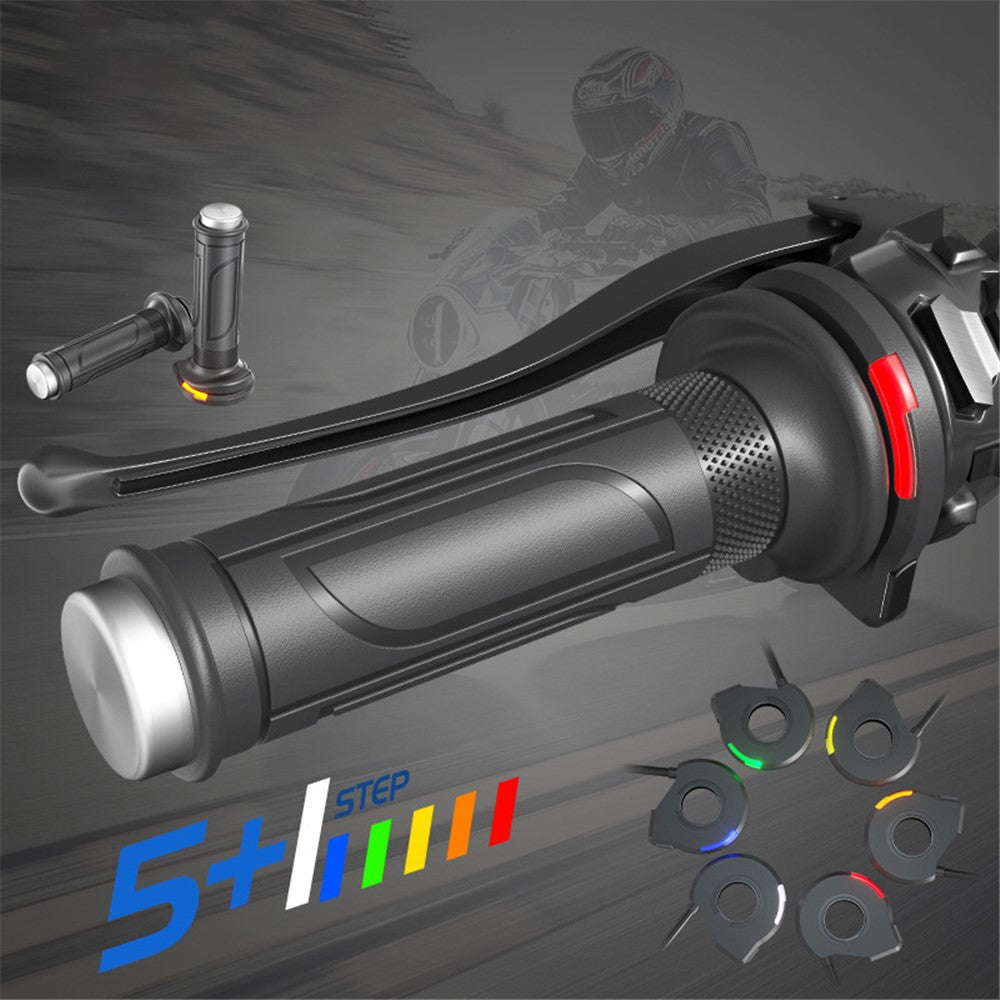

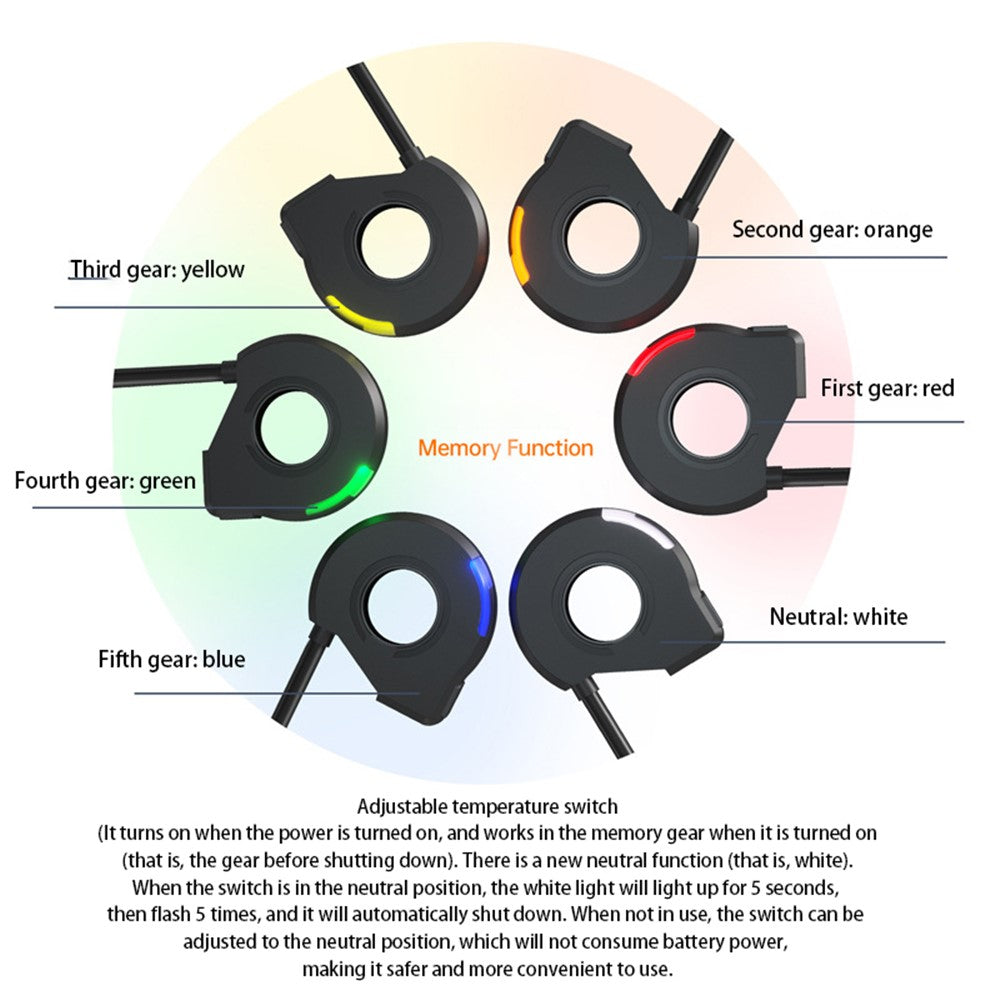

Instructions for Use: • Red line is positive, black line is negative, yellow line is ACC line, please do not connect the wrong, otherwise, it is easy to cause product damage. • Click the on/off key: it is to switch gears and power on. • Power on that is to boot, boot to memory gear work (that is, the gear before shutdown) the original default neutral, boot does not change gear. • Memorize the current gear when working in any gear, it can also be memorized when power is lost, press 3 seconds to turn off the power. • 5LED indicates different gear colors: 100% red, 75% orange, 50% yellow, 40% green, 30% blue, neutral: white. • Anti-surge and reverse connection protection; ACC control function.

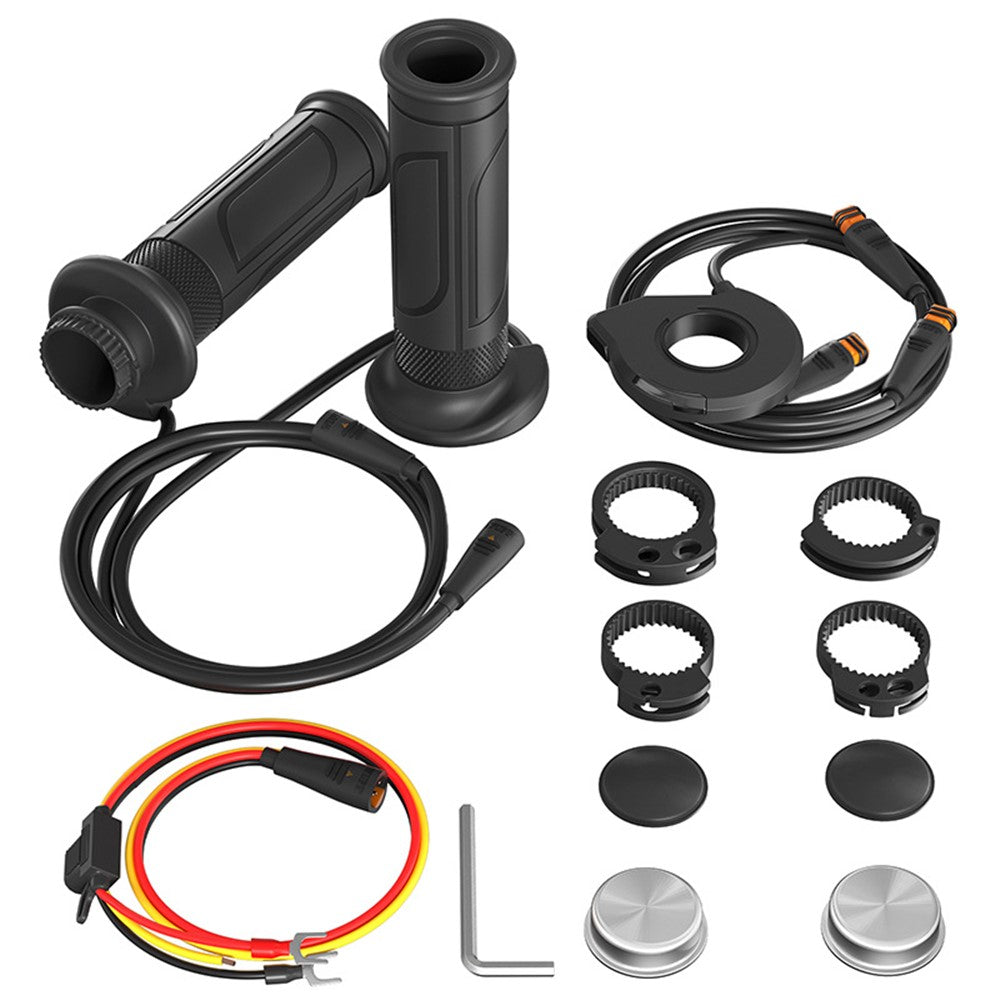

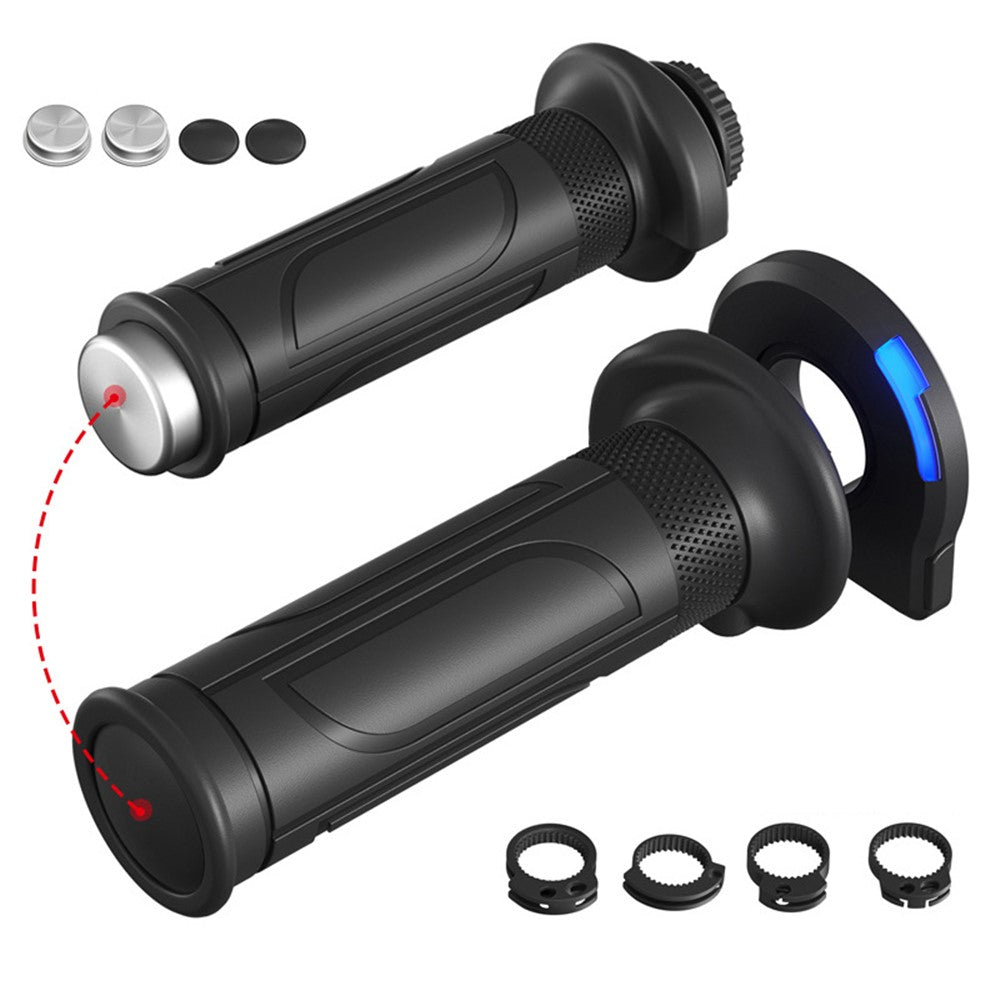

Package included • 1Pair x Handlebar Heated Grip • 1 x Wrench • 4 x Throttle Core • 4 x Handlebar Plug
